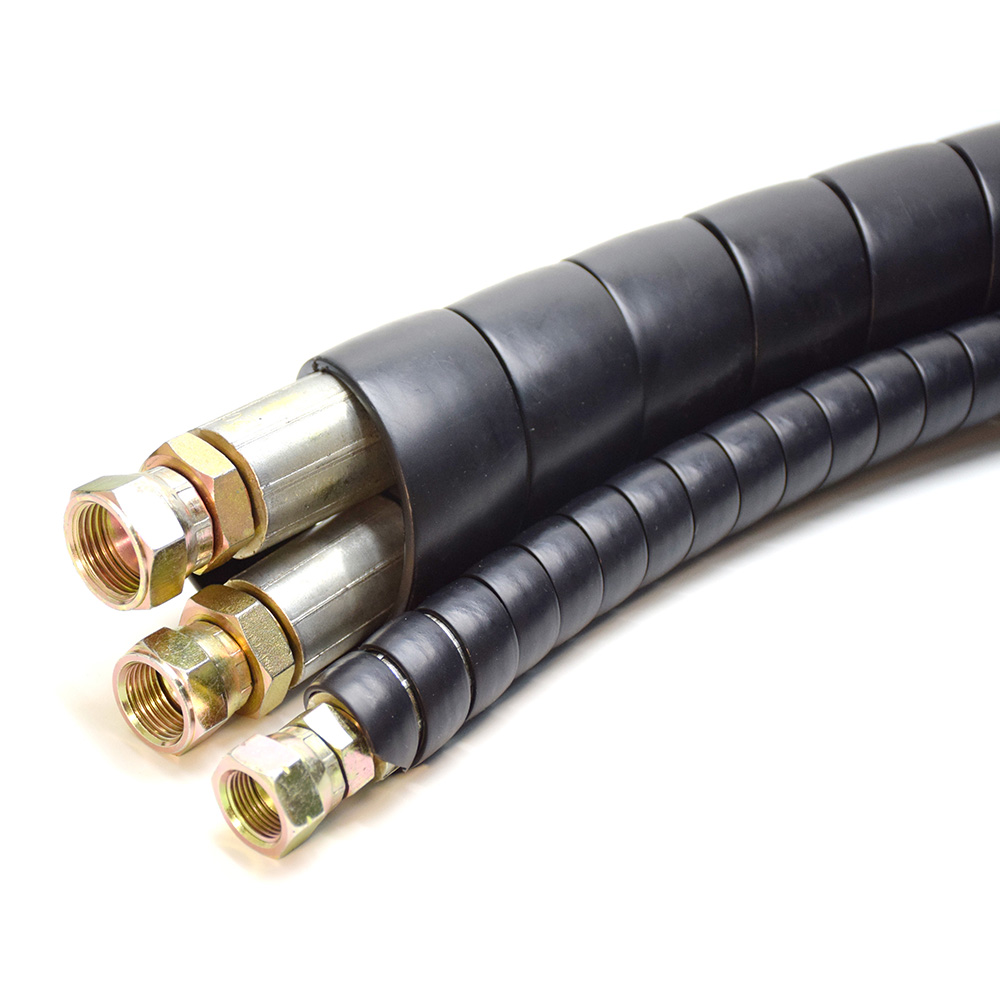

Mainly used in the protection of hydraulic hose, pressure pipe and cable products. Through adding spiral wrap on the outside of the product, it has comprehensively improved the performance of wear-resisting, insulation, oil resistant and flame retardant, resistance to ultraviolet radiation, thus increased the service life of the product, and can have sorting, beautification effect.
Application:
Firstly fix an end of the spiral tube with the protection belt, then circle and tighten according to clockwise.
Technical data:
Material: High density polyethylene (HDPE)/PP/PE
Operating range:-40℃-+80℃
Tensile strength: 25MPa at room temperature
Standard color: Black
Other features: Oil resistant, oiling agent resistant and anti-UV
Standard package: 10m-20m/carton
Approval: RoHS
Part No. | O.D | I.D | Wall thickness(W) | Screw pitch(P) | Application product size |
010 | 10.0±1 | 7.8±1 | 1.2±0.15 | 9.5±1 | 8-11 |
012 | 12.0±1 | 9.6±1 | 1.2±0.15 | 10.5±1 | 9-13 |
016 | 16.0±1 | 13.4±1 | 1.3±0.15 | 12±1 | 13-18 |
020 | 20.0±1 | 16.0±1 | 2.0±0.15 | 15±1 | 16-22 |
025 | 25.0±2 | 20.6±2 | 2.2±0.15 | 17±1 | 20-27 |
032 | 32.0±2 | 27.0±2 | 2.5±0.25 | 22±1 | 27-36 |
040 | 40.0±2 | 34.6±2 | 2.7±0.30 | 24±1 | 34-44 |
050 | 48.5±3 | 41.5±3 | 3.4±0.30 | 30±1 | 43-55 |
063 | 62.6±3 | 56.0±3 | 3.7±0.30 | 37±1 | 55-57 |
075 | 75.0±4 | 66.2±4 | 4.4±0.30 | 42±1 | 66-80 |
090 | 90.0±5 | 80.2±5 | 4.9±0.30 | 45±1 | 80-90 |
110 | 110.0±6 | 99.0±6 | 5.5±0.30 | 50±1 | 90-115 |
125 | 125.0±6 | 113.2±6 | 5.9±0.40 | 52±1 | 113-130 |
Notes:
1.The part No. will be followed by BK,YL and so on to indicate the color.
2.Special package, sizes and colors can be supplied upon request.
