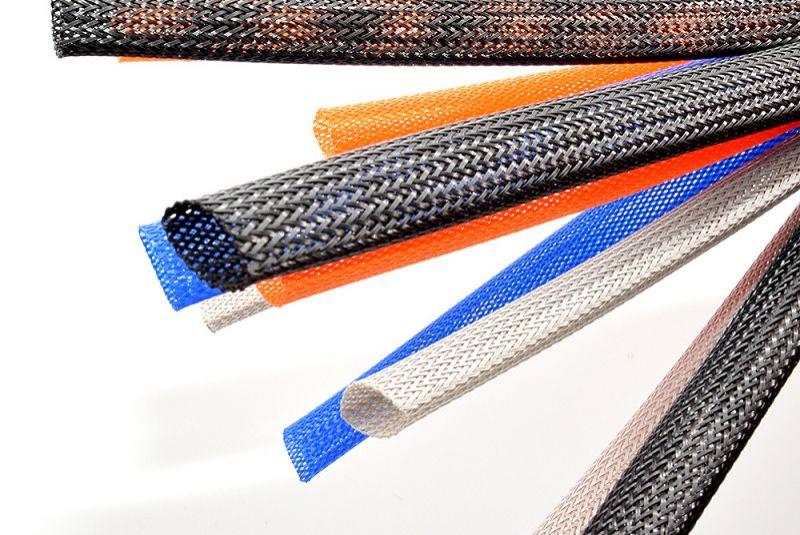

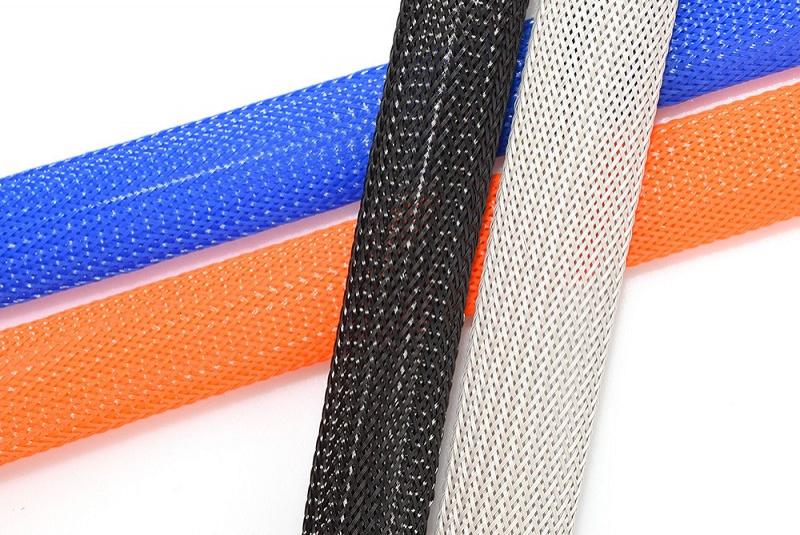

Rodent resistant braided sleeving is a good solution for fighting the harmful effects of unprotected wires which are exposed to rodents. In our own in-house testing, rodents completely avoided our new rodent resistant sleeving even when stuffed with food. At the same time it has wear-resistant, flame retardant, high flexibility, good flexibility and other excellent properies.
Appilcation:
Widely used in electronics, electrical appliances, automation equipment, computer wire to prevent rodents from harmful effects on unprotected wire
Technical data:
Product name：Rodent resistant self-closing braided wrap
Material: Polyester
Working temperature: -40℃～ +125℃
Low temperature resistance：No crack and degradation after test at -40℃ for 4h Short-term
aging test: No crack and degradation after test at 158℃ for 168h.
Melting point: 240±10℃
☆Flammability: Conform to V-2 class per UL94
☆Abrasion resistance：Conform to grade D（1000~4999 cycles）per SAE J2192
Color: Black
Cutting tool: Hot knife Approval: RoHS
Datasheet:
Part no. | Flat width（W） | Expansion range | Packaging (m/roll) | ||
Inch | mm | Min.(I) | Max.(O) | ||
006 | 1/4" | 6 | 1/8" | 7/16" | 500 |
010 | 3/8" | 10 | 3/16" | 1/2" | 350 |
012 | 1/2" | 12 | 1/4" | 3/4" | 300 |
016 | 5/8" | 16 | 3/8" | 1" | 250 |
019 | 3/4" | 19 | 1/2" | 1-1/4" | 200 |
025 | 1" | 25 | 5/8" | 1-5/8 | 200 |
032 | 1-1/4" | 32 | 3/4" | 1-3/4" | 150 |
038 | 1-1/2" | 38 | 1" | 2-1/8" | 100 |
045 | 1-3/4" | 45 | 1-1/4" | 2-3/4" | 100 |
050 | 2" | 50 | 1-1/2" | 3-1/2 | 100 |
064 | 2-1/2" | 64 | 1-3/4" | 3-5/8" | 100 |
Unit: mm
Notes:
1. The part No. will be followed with BK, GR and so on to indicate the color of sleeving.
2. Special packing, sizes, and colors can be customized.
3. All the numerical data are average or typical values, not including customized sizes.
